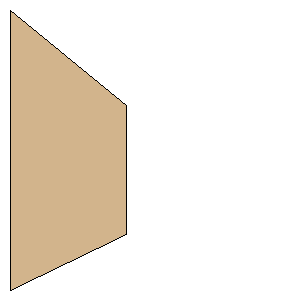

AGM-84D Harpoon w/Booster Trapez Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 6.6250 inches (168.2750 mm) | | Tip Chord: | 3.0630 inches (77.8002 mm) | | Sweep Distance: | 2.2500 inches (57.1500 mm) | | SemiSpan: | 2.7500 inches (69.8500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (69.8500 mm, 57.1500 mm) | | Point 3: | (69.8500 mm, 134.9502 mm) | | Point 4: | (0.0000 mm, 168.2750 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 6.6250 inches (168.2750 mm) |
