Rocketry Parts Database >> Fins >>

red_arrow_black_brant_ii.rkt Fre Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

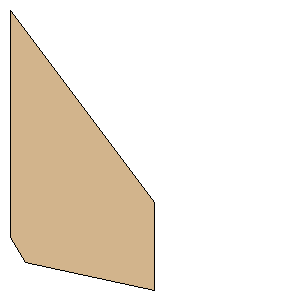

Point 1:(0.0000 mm, 189.5903 mm)
Point 2:(13.2846 mm, 210.3336 mm)
Point 3:(120.6941 mm, 233.6319 mm)
Point 4:(120.6941 mm, 160.5777 mm)
Point 5:(0.0000 mm, 0.0000 mm)
Width:7.4642 inches (189.5903 mm)
Height:9.1981 inches (233.6319 mm)
