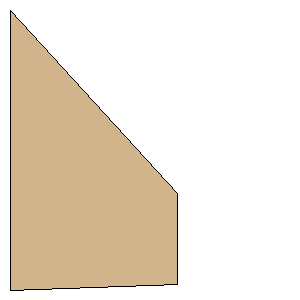

M.A.R.S. 1 or Challenge 142 Trap Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 10.2100 inches (259.3340 mm) | | Tip Chord: | 3.3340 inches (84.6836 mm) | | Sweep Distance: | 6.6840 inches (169.7736 mm) | | SemiSpan: | 6.1250 inches (155.5750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (155.5750 mm, 169.7736 mm) | | Point 3: | (155.5750 mm, 254.4572 mm) | | Point 4: | (0.0000 mm, 259.3340 mm) | | Width: | 6.1250 inches (155.5750 mm) | | Height: | 10.2100 inches (259.3340 mm) |
