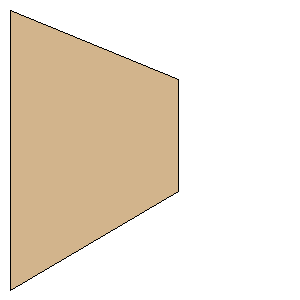

U.S. Rockets Troposphere Seeker Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Root Chord:5.0000 inches (127.0000 mm)
Tip Chord:2.0000 inches (50.8000 mm)
Sweep Distance:1.2350 inches (31.3690 mm)
SemiSpan:3.0000 inches (76.2000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(76.2000 mm, 31.3690 mm)
Point 3:(76.2000 mm, 82.1690 mm)
Point 4:(0.0000 mm, 127.0000 mm)
Width:3.0000 inches (76.2000 mm)
Height:5.0000 inches (127.0000 mm)
