Rocketry Parts Database >> Fins >>

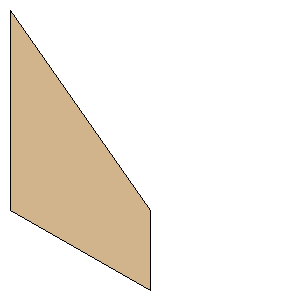

U.S. Rockets Hi-Test 3100 Trapez Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Root Chord:5.0000 inches (127.0000 mm)
Tip Chord:2.0000 inches (50.8000 mm)
Sweep Distance:5.0000 inches (127.0000 mm)
SemiSpan:3.5000 inches (88.9000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(88.9000 mm, 127.0000 mm)
Point 3:(88.9000 mm, 177.8000 mm)
Point 4:(0.0000 mm, 127.0000 mm)
Width:3.5000 inches (88.9000 mm)
Height:7.0000 inches (177.8000 mm)
