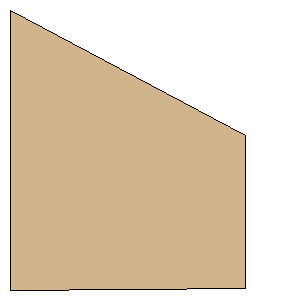

Frog 1 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 5.1250 inches (130.1750 mm) | | Tip Chord: | 2.8130 inches (71.4502 mm) | | Sweep Distance: | 2.2933 inches (58.2498 mm) | | SemiSpan: | 4.3130 inches (109.5502 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (109.5502 mm, 58.2498 mm) | | Point 3: | (109.5502 mm, 129.7000 mm) | | Point 4: | (0.0000 mm, 130.1750 mm) | | Width: | 4.3130 inches (109.5502 mm) | | Height: | 5.1250 inches (130.1750 mm) |
