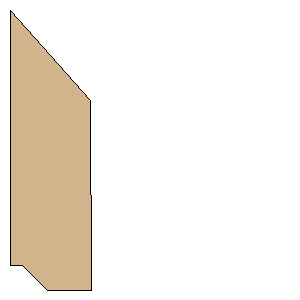

polecat_v2_75.rkt Freeform Fin S Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 410.0330 mm) | | Point 2: | (20.4406 mm, 410.0330 mm) | | Point 3: | (59.7808 mm, 449.8710 mm) | | Point 4: | (130.4940 mm, 449.8710 mm) | | Point 5: | (129.9960 mm, 146.1050 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 16.1430 inches (410.0330 mm) | | Height: | 17.7115 inches (449.8710 mm) |
