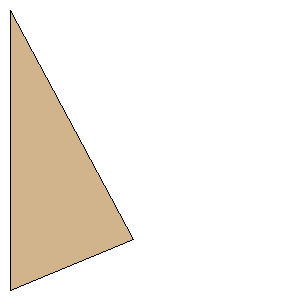

mods_loc_starburst.rkt Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 6.2500 inches (158.7500 mm) | | Tip Chord: | 0.0000 inches (0.0000 mm) | | Sweep Distance: | 5.1250 inches (130.1750 mm) | | SemiSpan: | 2.7500 inches (69.8500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (69.8500 mm, 130.1750 mm) | | Point 3: | (69.8500 mm, 130.1750 mm) | | Point 4: | (0.0000 mm, 158.7500 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 6.2500 inches (158.7500 mm) |
