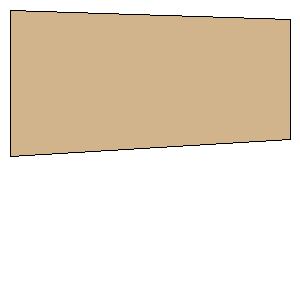

Andromeda Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 5.5000 inches (139.7000 mm) | | Tip Chord: | 4.5000 inches (114.3000 mm) | | Sweep Distance: | 0.3667 inches (9.3142 mm) | | SemiSpan: | 10.5000 inches (266.7000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (266.7000 mm, 9.3142 mm) | | Point 3: | (266.7000 mm, 123.6142 mm) | | Point 4: | (0.0000 mm, 139.7000 mm) | | Width: | 10.5000 inches (266.7000 mm) | | Height: | 5.5000 inches (139.7000 mm) |
