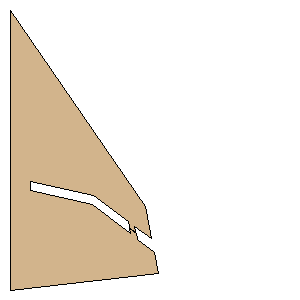

Katana-54mm.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (LOC) |
Download as PDF | Point 1: | (0.0000 mm, 289.0520 mm) | | Point 2: | (152.9080 mm, 272.2880 mm) | | Point 3: | (149.0220 mm, 249.9360 mm) | | Point 4: | (131.3660 mm, 236.4160 mm) | | Point 5: | (130.2360 mm, 230.4260 mm) | | Point 6: | (123.1930 mm, 225.2290 mm) | | Point 7: | (124.2820 mm, 231.2060 mm) | | Point 8: | (84.9681 mm, 201.0970 mm) | | Point 9: | (21.1404 mm, 186.5430 mm) | | Point 10: | (21.1404 mm, 177.0410 mm) | | Point 11: | (86.2508 mm, 191.9200 mm) | | Point 12: | (121.9200 mm, 218.2420 mm) | | Point 13: | (123.0120 mm, 224.2460 mm) | | Point 14: | (130.0560 mm, 229.4460 mm) | | Point 15: | (128.9610 mm, 223.2230 mm) | | Point 16: | (146.4110 mm, 236.1010 mm) | | Point 17: | (140.3730 mm, 202.9660 mm) | | Point 18: | (0.0000 mm, 0.0000 mm) | | Point 19: | (0.0000 mm, 0.0000 mm) | | Point 20: | (0.0000 mm, 0.0000 mm) | | Width: | 11.3800 inches (289.0520 mm) | | Height: | 11.3800 inches (289.0520 mm) |
