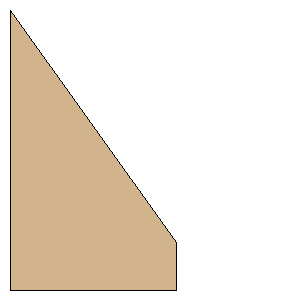

LOC/Precision Athena3 Trapezoid Fin Set Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Aircraft plywood (LOC)

Download as PDF

Root Chord:5.8750 inches (149.2250 mm)
Tip Chord:1.0000 inches (25.4000 mm)
Sweep Distance:4.8750 inches (123.8250 mm)
SemiSpan:3.5000 inches (88.9000 mm)
Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(88.9000 mm, 123.8250 mm)
Point 3:(88.9000 mm, 149.2250 mm)
Point 4:(0.0000 mm, 149.2250 mm)
Width:3.5000 inches (88.9000 mm)
Height:5.8750 inches (149.2250 mm)
