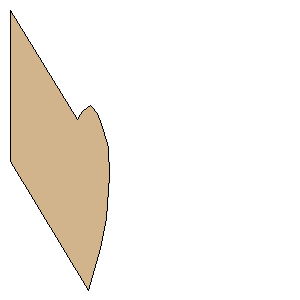

Semroc-Sprite.rkt Freeform Fin S Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 34.2900 mm) | | Point 2: | (17.7800 mm, 63.5000 mm) | | Point 3: | (20.5740 mm, 54.1020 mm) | | Point 4: | (21.8319 mm, 47.2299 mm) | | Point 5: | (22.6060 mm, 37.8460 mm) | | Point 6: | (22.3160 mm, 31.2550 mm) | | Point 7: | (21.0820 mm, 26.6700 mm) | | Point 8: | (19.8956 mm, 23.5096 mm) | | Point 9: | (18.2880 mm, 21.5900 mm) | | Point 10: | (16.5069 mm, 23.0255 mm) | | Point 11: | (15.2400 mm, 24.8920 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Width: | 1.3500 inches (34.2900 mm) | | Height: | 2.5000 inches (63.5000 mm) |
