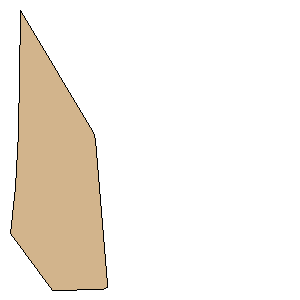

Semroc-MX-774.rkt Freeform Fin S Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 2.6086 mm) | | Point 2: | (-0.9391 mm, 48.4152 mm) | | Point 3: | (-2.1439 mm, 70.1794 mm) | | Point 4: | (-4.2781 mm, 87.9874 mm) | | Point 5: | (12.3386 mm, 110.4480 mm) | | Point 6: | (32.3725 mm, 110.2380 mm) | | Point 7: | (34.0681 mm, 109.3780 mm) | | Point 8: | (34.0159 mm, 107.7600 mm) | | Point 9: | (29.4248 mm, 51.2847 mm) | | Point 10: | (28.6422 mm, 48.4935 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 1.5097 inches (38.3462 mm) | | Height: | 4.3483 inches (110.4480 mm) |
