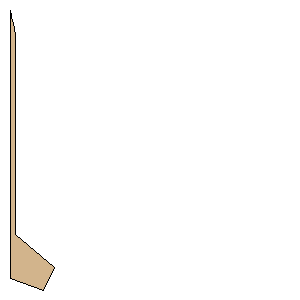

Ascender_18.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 152.4000 mm) | | Point 2: | (19.0500 mm, 158.7500 mm) | | Point 3: | (25.4000 mm, 146.0500 mm) | | Point 4: | (3.1750 mm, 127.0000 mm) | | Point 5: | (3.1750 mm, 18.9538 mm) | | Point 6: | (3.1682 mm, 18.1241 mm) | | Point 7: | (3.1479 mm, 17.2947 mm) | | Point 8: | (3.1140 mm, 16.4658 mm) | | Point 9: | (3.0666 mm, 15.6375 mm) | | Point 10: | (3.0057 mm, 14.8101 mm) | | Point 11: | (2.9313 mm, 13.9838 mm) | | Point 12: | (2.8434 mm, 13.1588 mm) | | Point 13: | (2.7420 mm, 12.3353 mm) | | Point 14: | (2.6272 mm, 11.5137 mm) | | Point 15: | (2.4990 mm, 10.6940 mm) | | Point 16: | (2.3574 mm, 9.8765 mm) | | Point 17: | (2.2025 mm, 9.0614 mm) | | Point 18: | (2.0343 mm, 8.2490 mm) | | Point 19: | (1.8529 mm, 7.4395 mm) | | Point 20: | (1.6582 mm, 6.6330 mm) | | Point 21: | (0.0000 mm, 0.0000 mm) | | Width: | 6.0000 inches (152.4000 mm) | | Height: | 6.2500 inches (158.7500 mm) |
