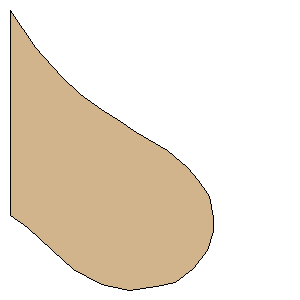

Estes 36D Squared Modified Freef Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 76.2000 mm) | | Point 2: | (6.3051 mm, 80.6517 mm) | | Point 3: | (15.8750 mm, 88.9000 mm) | | Point 4: | (23.6674 mm, 96.0484 mm) | | Point 5: | (33.7128 mm, 101.5570 mm) | | Point 6: | (44.3385 mm, 103.6310 mm) | | Point 7: | (54.1887 mm, 102.3500 mm) | | Point 8: | (61.0839 mm, 100.7080 mm) | | Point 9: | (67.9791 mm, 95.7504 mm) | | Point 10: | (73.0250 mm, 88.9000 mm) | | Point 11: | (75.2026 mm, 81.9601 mm) | | Point 12: | (75.2026 mm, 76.7066 mm) | | Point 13: | (73.8892 mm, 69.1871 mm) | | Point 14: | (69.9491 mm, 63.2446 mm) | | Point 15: | (65.7759 mm, 58.3108 mm) | | Point 16: | (58.4572 mm, 52.0810 mm) | | Point 17: | (46.9986 mm, 45.4976 mm) | | Point 18: | (40.8417 mm, 41.2851 mm) | | Point 19: | (33.7128 mm, 36.7485 mm) | | Point 20: | (26.2598 mm, 31.2397 mm) | | Point 21: | (19.1308 mm, 24.7588 mm) | | Point 22: | (9.4095 mm, 13.7414 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 4.0800 inches (103.6310 mm) |
