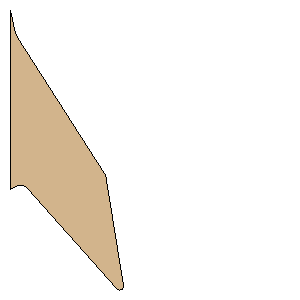

Estes Sky Bird II Freeform Fin S Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 71.1200 mm)
Point 2:(2.4684 mm, 69.8858 mm)
Point 3:(3.0457 mm, 69.6539 mm)
Point 4:(3.6531 mm, 69.5191 mm)
Point 5:(4.2743 mm, 69.4850 mm)
Point 6:(4.8927 mm, 69.5523 mm)
Point 7:(5.4920 mm, 69.7195 mm)
Point 8:(6.0561 mm, 69.9819 mm)
Point 9:(7.0199 mm, 70.7624 mm)
Point 10:(42.2644 mm, 110.4124 mm)
Point 11:(42.5593 mm, 110.6688 mm)
Point 12:(42.9098 mm, 110.8418 mm)
Point 13:(43.2927 mm, 110.9199 mm)
Point 14:(43.6830 mm, 110.8981 mm)
Point 15:(44.0548 mm, 110.7777 mm)
Point 16:(44.3838 mm, 110.5667 mm)
Point 17:(44.6483 mm, 110.2790 mm)
Point 18:(44.8310 mm, 109.9335 mm)
Point 19:(44.9197 mm, 109.5529 mm)
Point 20:(44.9088 mm, 109.1622 mm)
Point 21:(38.3060 mm, 67.3446 mm)
Point 22:(38.2601 mm, 67.0882 mm)
Point 23:(38.2038 mm, 66.8340 mm)
Point 24:(38.1370 mm, 66.5823 mm)
Point 25:(38.0600 mm, 66.3335 mm)
Point 26:(37.9729 mm, 66.0881 mm)
Point 27:(37.8758 mm, 65.8465 mm)
Point 28:(37.7688 mm, 65.6090 mm)
Point 29:(37.6523 mm, 65.3762 mm)
Point 30:(37.3909 mm, 64.9258 mm)
Point 31:(2.9826 mm, 10.8555 mm)
Point 32:(2.8161 mm, 10.5742 mm)
Point 33:(2.6680 mm, 10.2829 mm)
Point 34:(2.5390 mm, 9.9826 mm)
Point 35:(2.3401 mm, 9.3602 mm)
Point 36:(0.0000 mm, 0.0000 mm)
Width:2.8000 inches (71.1200 mm)
Height:4.3669 inches (110.9199 mm)
