Rocketry Parts Database >> Fins >>

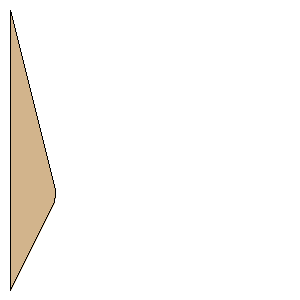

E.G.G.-3 Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 56.8788 mm)
Point 2:(8.5297 mm, 40.2902 mm)
Point 3:(8.7245 mm, 39.8753 mm)
Point 4:(8.8888 mm, 39.4473 mm)
Point 5:(9.0218 mm, 39.0087 mm)
Point 6:(9.1228 mm, 38.5615 mm)
Point 7:(9.1914 mm, 38.1083 mm)
Point 8:(9.2270 mm, 37.6513 mm)
Point 9:(9.2296 mm, 37.1929 mm)
Point 10:(9.1991 mm, 36.7355 mm)
Point 11:(9.0396 mm, 35.8332 mm)
Point 12:(0.0000 mm, 0.0000 mm)
Width:2.2393 inches (56.8788 mm)
Height:2.2393 inches (56.8788 mm)
