Rocketry Parts Database >> Fins >>

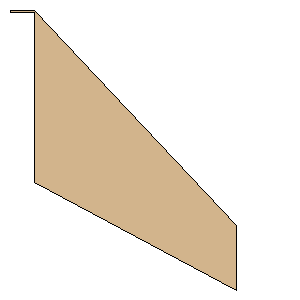

Estes Ram Jet Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 0.7938 mm)
Point 2:(7.1438 mm, 0.7938 mm)
Point 3:(7.1438 mm, 50.8000 mm)
Point 4:(66.6750 mm, 82.5500 mm)
Point 5:(66.6750 mm, 63.5000 mm)
Point 6:(7.1438 mm, 0.0000 mm)
Point 7:(0.0000 mm, 0.0000 mm)
Width:2.6250 inches (66.6750 mm)
Height:3.2500 inches (82.5500 mm)
