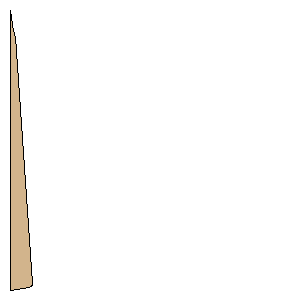

Estes V-2 K-22 Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 19.5580 mm)
Point 2:(1.3554 mm, 19.3570 mm)
Point 3:(1.3923 mm, 19.3487 mm)
Point 4:(1.4276 mm, 19.3350 mm)
Point 5:(1.4604 mm, 19.3162 mm)
Point 6:(1.4901 mm, 19.2927 mm)
Point 7:(1.5160 mm, 19.2651 mm)
Point 8:(1.5375 mm, 19.2339 mm)
Point 9:(1.5541 mm, 19.1999 mm)
Point 10:(1.5654 mm, 19.1638 mm)
Point 11:(1.5713 mm, 19.1264 mm)
Point 12:(1.5715 mm, 19.0885 mm)
Point 13:(0.4662 mm, 2.8731 mm)
Point 14:(0.4546 mm, 2.7318 mm)
Point 15:(0.4414 mm, 2.5906 mm)
Point 16:(0.4266 mm, 2.4496 mm)
Point 17:(0.4103 mm, 2.3088 mm)
Point 18:(0.3924 mm, 2.1682 mm)
Point 19:(0.3729 mm, 2.0277 mm)
Point 20:(0.3519 mm, 1.8875 mm)
Point 21:(0.3293 mm, 1.7476 mm)
Point 22:(0.3051 mm, 1.6079 mm)
Point 23:(0.2794 mm, 1.4684 mm)
Point 24:(0.0000 mm, 0.0000 mm)
Width:0.7700 inches (19.5580 mm)
Height:0.7700 inches (19.5580 mm)
