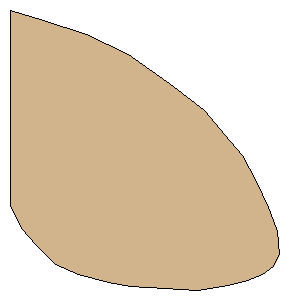

BNC-R3 Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 50.8000 mm)
Point 2:(3.1931 mm, 56.6363 mm)
Point 3:(6.5333 mm, 60.3940 mm)
Point 4:(11.8220 mm, 65.6826 mm)
Point 5:(17.6673 mm, 68.3270 mm)
Point 6:(25.4611 mm, 70.2754 mm)
Point 7:(31.1673 mm, 71.2496 mm)
Point 8:(40.0745 mm, 71.9455 mm)
Point 9:(48.4250 mm, 72.2239 mm)
Point 10:(56.3782 mm, 70.9975 mm)
Point 11:(61.1916 mm, 69.8973 mm)
Point 12:(65.1799 mm, 68.1094 mm)
Point 13:(68.0679 mm, 66.1840 mm)
Point 14:(69.5807 mm, 63.0209 mm)
Point 15:(68.8931 mm, 57.2448 mm)
Point 16:(66.6569 mm, 51.0693 mm)
Point 17:(63.5950 mm, 44.2497 mm)
Point 18:(59.9765 mm, 37.5693 mm)
Point 19:(55.3837 mm, 32.1415 mm)
Point 20:(50.0951 mm, 25.8786 mm)
Point 21:(42.3013 mm, 19.6158 mm)
Point 22:(30.6106 mm, 11.5436 mm)
Point 23:(19.6158 mm, 6.3942 mm)
Point 24:(8.7601 mm, 2.6364 mm)
Point 25:(0.0000 mm, 0.0000 mm)
Width:2.7394 inches (69.5807 mm)
Height:2.8435 inches (72.2239 mm)
