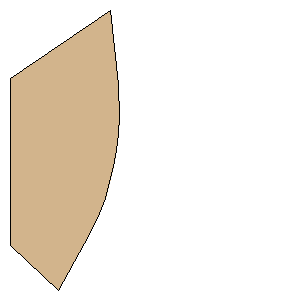

Thingus_1.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 63.4348 mm) | | Point 2: | (18.3380 mm, 80.2071 mm) | | Point 3: | (28.3791 mm, 62.5075 mm) | | Point 4: | (31.3061 mm, 56.9552 mm) | | Point 5: | (33.8846 mm, 51.2328 mm) | | Point 6: | (36.1049 mm, 45.3620 mm) | | Point 7: | (37.9584 mm, 39.3654 mm) | | Point 8: | (39.4381 mm, 33.2658 mm) | | Point 9: | (40.5384 mm, 27.0864 mm) | | Point 10: | (41.2549 mm, 20.8509 mm) | | Point 11: | (41.5851 mm, 14.5830 mm) | | Point 12: | (41.0828 mm, 2.0459 mm) | | Point 13: | (38.1999 mm, -26.1647 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 2.4974 inches (63.4348 mm) | | Height: | 4.1879 inches (106.3718 mm) |
