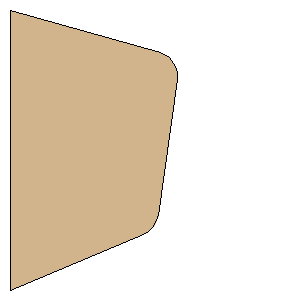

CDD-75-PL40.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 73.0250 mm) | | Point 2: | (34.7668 mm, 58.5388 mm) | | Point 3: | (35.3588 mm, 58.2554 mm) | | Point 4: | (35.9184 mm, 57.9124 mm) | | Point 5: | (36.4396 mm, 57.5134 mm) | | Point 6: | (36.9169 mm, 57.0628 mm) | | Point 7: | (37.3450 mm, 56.5653 mm) | | Point 8: | (37.7195 mm, 56.0263 mm) | | Point 9: | (38.0364 mm, 55.4515 mm) | | Point 10: | (38.2923 mm, 54.8471 mm) | | Point 11: | (38.4844 mm, 54.2194 mm) | | Point 12: | (38.6107 mm, 53.5753 mm) | | Point 13: | (43.6668 mm, 18.1823 mm) | | Point 14: | (43.7306 mm, 17.2745 mm) | | Point 15: | (43.6640 mm, 16.3669 mm) | | Point 16: | (43.4683 mm, 15.4781 mm) | | Point 17: | (43.1476 mm, 14.6264 mm) | | Point 18: | (42.7085 mm, 13.8293 mm) | | Point 19: | (42.1599 mm, 13.1032 mm) | | Point 20: | (41.5131 mm, 12.4630 mm) | | Point 21: | (40.7815 mm, 11.9217 mm) | | Point 22: | (39.1251 mm, 11.1786 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 2.8750 inches (73.0250 mm) | | Height: | 2.8750 inches (73.0250 mm) |
