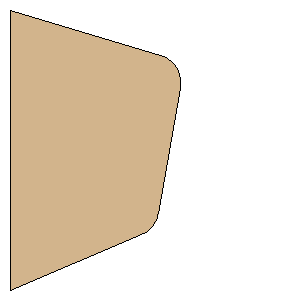

CDD-75-PL40.rkt Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 60.9600 mm)
Point 2:(28.5535 mm, 48.9675 mm)
Point 3:(29.1255 mm, 48.6929 mm)
Point 4:(29.6671 mm, 48.3627 mm)
Point 5:(30.1731 mm, 47.9800 mm)
Point 6:(30.6384 mm, 47.5487 mm)
Point 7:(31.0584 mm, 47.0732 mm)
Point 8:(31.4288 mm, 46.5581 mm)
Point 9:(31.7459 mm, 46.0087 mm)
Point 10:(32.0067 mm, 45.4303 mm)
Point 11:(32.2084 mm, 44.8288 mm)
Point 12:(32.3491 mm, 44.2102 mm)
Point 13:(37.1249 mm, 16.9880 mm)
Point 14:(37.2179 mm, 16.0709 mm)
Point 15:(37.1771 mm, 15.1499 mm)
Point 16:(37.0034 mm, 14.2446 mm)
Point 17:(36.7004 mm, 13.3739 mm)
Point 18:(36.2745 mm, 12.5563 mm)
Point 19:(35.7348 mm, 11.8090 mm)
Point 20:(35.0926 mm, 11.1477 mm)
Point 21:(34.3613 mm, 10.5864 mm)
Point 22:(33.5565 mm, 10.1368 mm)
Point 23:(32.6951 mm, 9.8085 mm)
Point 24:(0.0000 mm, 0.0000 mm)
Width:2.4000 inches (60.9600 mm)
Height:2.4000 inches (60.9600 mm)
