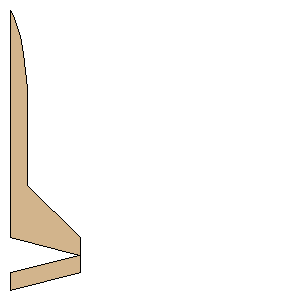

Privateer.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 165.1000 mm) | | Point 2: | (50.5460 mm, 177.8000 mm) | | Point 3: | (0.0000 mm, 190.5000 mm) | | Point 4: | (0.0000 mm, 203.2000 mm) | | Point 5: | (50.8000 mm, 190.5000 mm) | | Point 6: | (50.8000 mm, 165.1000 mm) | | Point 7: | (12.7000 mm, 127.0000 mm) | | Point 8: | (12.7000 mm, 57.1500 mm) | | Point 9: | (9.5250 mm, 31.7500 mm) | | Point 10: | (7.6200 mm, 19.0500 mm) | | Point 11: | (3.1750 mm, 6.3500 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Width: | 6.5000 inches (165.1000 mm) | | Height: | 8.0000 inches (203.2000 mm) |
