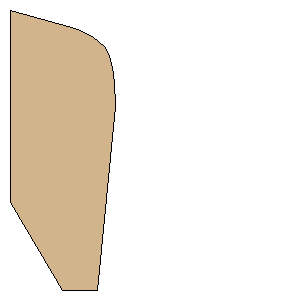

DART.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 34.9250 mm) | | Point 2: | (9.5250 mm, 50.8000 mm) | | Point 3: | (15.8750 mm, 50.8000 mm) | | Point 4: | (19.0500 mm, 17.4625 mm) | | Point 5: | (18.9669 mm, 13.1808 mm) | | Point 6: | (18.6417 mm, 10.4709 mm) | | Point 7: | (18.0997 mm, 8.4113 mm) | | Point 8: | (17.3409 mm, 6.8938 mm) | | Point 9: | (16.0943 mm, 5.7014 mm) | | Point 10: | (15.0104 mm, 4.8884 mm) | | Point 11: | (13.8180 mm, 4.2922 mm) | | Point 12: | (12.3004 mm, 3.5334 mm) | | Point 13: | (11.1125 mm, 3.1750 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 1.3750 inches (34.9250 mm) | | Height: | 2.0000 inches (50.8000 mm) |
