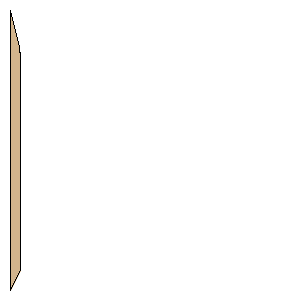

Cadet.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 355.6000 mm) | | Point 2: | (12.7000 mm, 330.2000 mm) | | Point 3: | (12.7000 mm, 53.9269 mm) | | Point 4: | (12.6966 mm, 53.5121 mm) | | Point 5: | (12.6865 mm, 53.0974 mm) | | Point 6: | (12.6695 mm, 52.6829 mm) | | Point 7: | (12.6458 mm, 52.2687 mm) | | Point 8: | (12.6154 mm, 51.8550 mm) | | Point 9: | (12.5781 mm, 51.4419 mm) | | Point 10: | (12.5342 mm, 51.0294 mm) | | Point 11: | (12.4835 mm, 50.6177 mm) | | Point 12: | (12.4261 mm, 50.2068 mm) | | Point 13: | (12.3620 mm, 49.7970 mm) | | Point 14: | (12.2912 mm, 49.3883 mm) | | Point 15: | (12.2138 mm, 48.9807 mm) | | Point 16: | (12.1297 mm, 48.5745 mm) | | Point 17: | (12.0389 mm, 48.1697 mm) | | Point 18: | (11.9416 mm, 47.7665 mm) | | Point 19: | (0.0000 mm, 0.0000 mm) | | Width: | 14.0000 inches (355.6000 mm) | | Height: | 14.0000 inches (355.6000 mm) |
