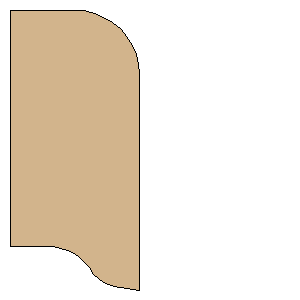

Master_Blaster.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 69.8500 mm) | | Point 2: | (12.7000 mm, 69.8500 mm) | | Point 3: | (15.0356 mm, 70.3051 mm) | | Point 4: | (17.0194 mm, 70.8619 mm) | | Point 5: | (18.8870 mm, 71.7321 mm) | | Point 6: | (20.5894 mm, 72.8929 mm) | | Point 7: | (22.0816 mm, 74.3138 mm) | | Point 8: | (23.3244 mm, 75.9572 mm) | | Point 9: | (24.6311 mm, 78.0127 mm) | | Point 10: | (25.9554 mm, 79.2378 mm) | | Point 11: | (27.4398 mm, 80.2630 mm) | | Point 12: | (29.0546 mm, 81.0675 mm) | | Point 13: | (30.7670 mm, 81.6350 mm) | | Point 14: | (32.5426 mm, 81.9542 mm) | | Point 15: | (38.1000 mm, 82.5500 mm) | | Point 16: | (38.1000 mm, 25.4000 mm) | | Point 17: | (38.1000 mm, 19.0500 mm) | | Point 18: | (37.8655 mm, 16.0699 mm) | | Point 19: | (37.1676 mm, 13.1632 mm) | | Point 20: | (36.0237 mm, 10.4015 mm) | | Point 21: | (34.4618 mm, 7.8527 mm) | | Point 22: | (32.5204 mm, 5.5796 mm) | | Point 23: | (30.2473 mm, 3.6382 mm) | | Point 24: | (27.6985 mm, 2.0763 mm) | | Point 25: | (24.9368 mm, 0.9324 mm) | | Point 26: | (22.0301 mm, 0.2345 mm) | | Point 27: | (19.0500 mm, 0.0000 mm) | | Point 28: | (12.7000 mm, 0.0000 mm) | | Point 29: | (0.0000 mm, 0.0000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 3.2500 inches (82.5500 mm) |
