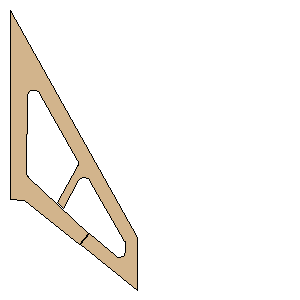

Dominion_Keeper.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 95.2712 mm) | | Point 2: | (7.3175 mm, 95.7738 mm) | | Point 3: | (35.2085 mm, 117.9800 mm) | | Point 4: | (39.7442 mm, 112.4850 mm) | | Point 5: | (9.3966 mm, 84.2205 mm) | | Point 6: | (9.2115 mm, 84.0331 mm) | | Point 7: | (9.0425 mm, 83.8310 mm) | | Point 8: | (8.8909 mm, 83.6157 mm) | | Point 9: | (8.7576 mm, 83.3884 mm) | | Point 10: | (8.6436 mm, 83.1510 mm) | | Point 11: | (8.5497 mm, 82.9049 mm) | | Point 12: | (8.4766 mm, 82.6518 mm) | | Point 13: | (8.4246 mm, 82.3936 mm) | | Point 14: | (8.3857 mm, 81.8687 mm) | | Point 15: | (8.7298 mm, 43.4435 mm) | | Point 16: | (8.8448 mm, 42.6248 mm) | | Point 17: | (9.1672 mm, 41.8635 mm) | | Point 18: | (9.6753 mm, 41.2113 mm) | | Point 19: | (10.3345 mm, 40.7124 mm) | | Point 20: | (11.1001 mm, 40.4005 mm) | | Point 21: | (11.9204 mm, 40.2969 mm) | | Point 22: | (12.7395 mm, 40.4086 mm) | | Point 23: | (13.5021 mm, 40.7280 mm) | | Point 24: | (14.1563 mm, 41.2334 mm) | | Point 25: | (14.6579 mm, 41.8907 mm) | | Point 26: | (34.0721 mm, 75.6941 mm) | | Point 27: | (34.2213 mm, 75.9884 mm) | | Point 28: | (34.3392 mm, 76.2965 mm) | | Point 29: | (34.4244 mm, 76.6153 mm) | | Point 30: | (34.4762 mm, 76.9411 mm) | | Point 31: | (34.4938 mm, 77.2706 mm) | | Point 32: | (34.4772 mm, 77.6001 mm) | | Point 33: | (34.4264 mm, 77.9261 mm) | | Point 34: | (34.3421 mm, 78.2451 mm) | | Point 35: | (34.2252 mm, 78.5536 mm) | | Point 36: | (34.0768 mm, 78.8483 mm) | | Point 37: | (23.7511 mm, 96.9536 mm) | | Point 38: | (26.8267 mm, 100.0290 mm) | | Point 39: | (34.7071 mm, 85.9815 mm) | | Point 40: | (35.0933 mm, 85.4367 mm) | | Point 41: | (35.5848 mm, 84.9847 mm) | | Point 42: | (36.1600 mm, 84.6455 mm) | | Point 43: | (36.7934 mm, 84.4342 mm) | | Point 44: | (37.4571 mm, 84.3599 mm) | | Point 45: | (38.1215 mm, 84.4262 mm) | | Point 46: | (38.7574 mm, 84.6299 mm) | | Point 47: | (39.3367 mm, 84.9621 mm) | | Point 48: | (40.2263 mm, 85.9483 mm) | | Point 49: | (57.7729 mm, 116.3620 mm) | | Point 50: | (57.8521 mm, 116.5080 mm) | | Point 51: | (57.9236 mm, 116.6580 mm) | | Point 52: | (57.9871 mm, 116.8120 mm) | | Point 53: | (58.0425 mm, 116.9680 mm) | | Point 54: | (58.0897 mm, 117.1280 mm) | | Point 55: | (58.1284 mm, 117.2890 mm) | | Point 56: | (58.1587 mm, 117.4530 mm) | | Point 57: | (58.1804 mm, 117.6170 mm) | | Point 58: | (58.1934 mm, 117.7830 mm) | | Point 59: | (58.1977 mm, 117.9490 mm) | | Point 60: | (58.1977 mm, 121.4280 mm) | | Point 61: | (58.1157 mm, 122.1450 mm) | | Point 62: | (57.8737 mm, 122.8250 mm) | | Point 63: | (57.4843 mm, 123.4330 mm) | | Point 64: | (56.9676 mm, 123.9370 mm) | | Point 65: | (56.3504 mm, 124.3120 mm) | | Point 66: | (55.6646 mm, 124.5370 mm) | | Point 67: | (54.9456 mm, 124.6020 mm) | | Point 68: | (54.2305 mm, 124.5020 mm) | | Point 69: | (53.5564 mm, 124.2440 mm) | | Point 70: | (52.9582 mm, 123.8400 mm) | | Point 71: | (40.0518 mm, 112.7930 mm) | | Point 72: | (35.4313 mm, 118.2030 mm) | | Point 73: | (64.1104 mm, 141.0070 mm) | | Point 74: | (64.1104 mm, 114.3700 mm) | | Point 75: | (0.0000 mm, 0.0000 mm) | | Width: | 3.7508 inches (95.2712 mm) | | Height: | 5.5515 inches (141.0070 mm) |
