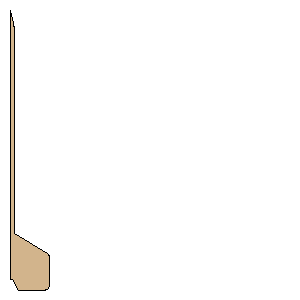

Aerobee-Hi_60.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 390.5250 mm) | | Point 2: | (3.1750 mm, 390.5250 mm) | | Point 3: | (12.7000 mm, 406.4000 mm) | | Point 4: | (50.8000 mm, 406.4000 mm) | | Point 5: | (51.7934 mm, 406.3220 mm) | | Point 6: | (52.7623 mm, 406.0890 mm) | | Point 7: | (53.6828 mm, 405.7080 mm) | | Point 8: | (54.5324 mm, 405.1870 mm) | | Point 9: | (55.2901 mm, 404.5400 mm) | | Point 10: | (55.9373 mm, 403.7820 mm) | | Point 11: | (56.4579 mm, 402.9330 mm) | | Point 12: | (56.8392 mm, 402.0120 mm) | | Point 13: | (57.0718 mm, 401.0430 mm) | | Point 14: | (57.1500 mm, 400.0500 mm) | | Point 15: | (57.1500 mm, 359.1190 mm) | | Point 16: | (57.1175 mm, 358.4780 mm) | | Point 17: | (57.0203 mm, 357.8430 mm) | | Point 18: | (56.8595 mm, 357.2210 mm) | | Point 19: | (56.6366 mm, 356.6180 mm) | | Point 20: | (56.3540 mm, 356.0410 mm) | | Point 21: | (56.0145 mm, 355.4960 mm) | | Point 22: | (55.6216 mm, 354.9870 mm) | | Point 23: | (55.1794 mm, 354.5210 mm) | | Point 24: | (54.6924 mm, 354.1020 mm) | | Point 25: | (54.1655 mm, 353.7350 mm) | | Point 26: | (6.3500 mm, 323.8500 mm) | | Point 27: | (6.3500 mm, 31.6538 mm) | | Point 28: | (6.3474 mm, 31.1352 mm) | | Point 29: | (6.3394 mm, 30.6168 mm) | | Point 30: | (6.3262 mm, 30.0984 mm) | | Point 31: | (6.3077 mm, 29.5802 mm) | | Point 32: | (6.2839 mm, 29.0622 mm) | | Point 33: | (6.2548 mm, 28.5445 mm) | | Point 34: | (6.2204 mm, 28.0271 mm) | | Point 35: | (6.1807 mm, 27.5101 mm) | | Point 36: | (6.1358 mm, 26.9935 mm) | | Point 37: | (6.0856 mm, 26.4774 mm) | | Point 38: | (6.0301 mm, 25.9618 mm) | | Point 39: | (5.9694 mm, 25.4469 mm) | | Point 40: | (5.9034 mm, 24.9325 mm) | | Point 41: | (5.8322 mm, 24.4189 mm) | | Point 42: | (5.7557 mm, 23.9060 mm) | | Point 43: | (5.6740 mm, 23.3940 mm) | | Point 44: | (5.5871 mm, 22.8828 mm) | | Point 45: | (5.4950 mm, 22.3725 mm) | | Point 46: | (5.3976 mm, 21.8632 mm) | | Point 47: | (5.2951 mm, 21.3549 mm) | | Point 48: | (5.1874 mm, 20.8477 mm) | | Point 49: | (5.0745 mm, 20.3416 mm) | | Point 50: | (4.9564 mm, 19.8366 mm) | | Point 51: | (4.8332 mm, 19.3330 mm) | | Point 52: | (0.0000 mm, 0.0000 mm) | | Width: | 15.3750 inches (390.5250 mm) | | Height: | 16.0000 inches (406.4000 mm) |
