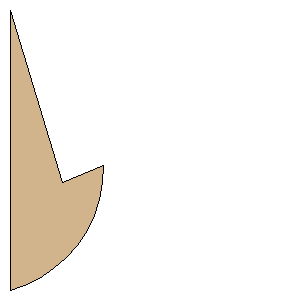

Mini_Jet_4.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 114.3000 mm) | | Point 2: | (5.8119 mm, 112.4170 mm) | | Point 3: | (12.0729 mm, 109.4640 mm) | | Point 4: | (17.8744 mm, 105.6880 mm) | | Point 5: | (23.1087 mm, 101.1580 mm) | | Point 6: | (27.6785 mm, 95.9584 mm) | | Point 7: | (31.4990 mm, 90.1859 mm) | | Point 8: | (34.4993 mm, 83.9476 mm) | | Point 9: | (36.6236 mm, 77.3594 mm) | | Point 10: | (37.8326 mm, 70.5435 mm) | | Point 11: | (38.1000 mm, 63.4985 mm) | | Point 12: | (21.6240 mm, 70.5335 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 4.5000 inches (114.3000 mm) | | Height: | 4.5000 inches (114.3000 mm) |
