Rocketry Parts Database >> Fins >>

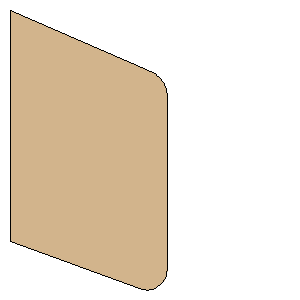

Maxi_Apogee_II.rkt Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 139.7000 mm)
Point 2:(78.1780 mm, 168.3650 mm)
Point 3:(79.7377 mm, 168.8260 mm)
Point 4:(81.3435 mm, 169.0840 mm)
Point 5:(82.9691 mm, 169.1350 mm)
Point 6:(84.5878 mm, 168.9770 mm)
Point 7:(86.1731 mm, 168.6140 mm)
Point 8:(87.6990 mm, 168.0510 mm)
Point 9:(89.1404 mm, 167.2980 mm)
Point 10:(90.4738 mm, 166.3660 mm)
Point 11:(91.6772 mm, 165.2720 mm)
Point 12:(92.7309 mm, 164.0340 mm)
Point 13:(93.6177 mm, 162.6700 mm)
Point 14:(94.3230 mm, 161.2050 mm)
Point 15:(94.8352 mm, 159.6610 mm)
Point 16:(95.2500 mm, 156.4420 mm)
Point 17:(95.2500 mm, 53.7817 mm)
Point 18:(95.1929 mm, 52.3076 mm)
Point 19:(95.0219 mm, 50.8423 mm)
Point 20:(94.7380 mm, 49.3946 mm)
Point 21:(94.3429 mm, 47.9733 mm)
Point 22:(93.8390 mm, 46.5868 mm)
Point 23:(93.2294 mm, 45.2434 mm)
Point 24:(92.5176 mm, 43.9512 mm)
Point 25:(91.7080 mm, 42.7180 mm)
Point 26:(90.8054 mm, 41.5512 mm)
Point 27:(89.8152 mm, 40.4576 mm)
Point 28:(88.7433 mm, 39.4440 mm)
Point 29:(87.5962 mm, 38.5164 mm)
Point 30:(86.3808 mm, 37.6803 mm)
Point 31:(85.1043 mm, 36.9408 mm)
Point 32:(83.7744 mm, 36.3022 mm)
Point 33:(0.0000 mm, 0.0000 mm)
Width:5.5000 inches (139.7000 mm)
Height:6.6589 inches (169.1350 mm)
