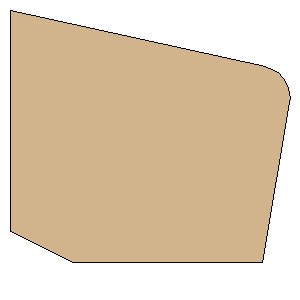

Punk_13.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 22.2250 mm) | | Point 2: | (6.3500 mm, 25.4000 mm) | | Point 3: | (25.4000 mm, 25.4000 mm) | | Point 4: | (28.0802 mm, 9.3185 mm) | | Point 5: | (28.1232 mm, 8.8392 mm) | | Point 6: | (28.0931 mm, 8.3588 mm) | | Point 7: | (27.9908 mm, 7.8886 mm) | | Point 8: | (27.8186 mm, 7.4391 mm) | | Point 9: | (27.5805 mm, 7.0209 mm) | | Point 10: | (27.2819 mm, 6.6435 mm) | | Point 11: | (26.9296 mm, 6.3155 mm) | | Point 12: | (26.5319 mm, 6.0446 mm) | | Point 13: | (26.0977 mm, 5.8369 mm) | | Point 14: | (25.6372 mm, 5.6972 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 1.1072 inches (28.1232 mm) | | Height: | 1.0000 inches (25.4000 mm) |
