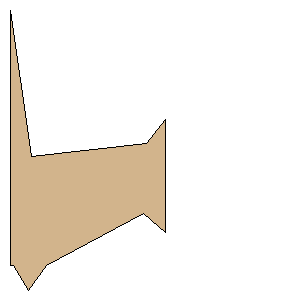

Vincia Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 133.3500 mm) | | Point 2: | (1.5875 mm, 133.3500 mm) | | Point 3: | (9.5250 mm, 146.0500 mm) | | Point 4: | (19.0500 mm, 133.3500 mm) | | Point 5: | (69.8500 mm, 106.3630 mm) | | Point 6: | (80.9625 mm, 115.8880 mm) | | Point 7: | (80.9625 mm, 57.1500 mm) | | Point 8: | (71.4375 mm, 69.8500 mm) | | Point 9: | (11.1125 mm, 76.2000 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 5.2500 inches (133.3500 mm) | | Height: | 5.7500 inches (146.0500 mm) |
