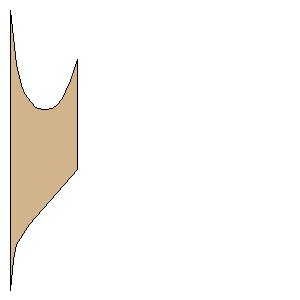

Starchaser.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 158.4070 mm) | | Point 2: | (3.7479 mm, 128.3630 mm) | | Point 3: | (6.9441 mm, 113.0220 mm) | | Point 4: | (19.0897 mm, 93.2051 mm) | | Point 5: | (67.3691 mm, 37.8859 mm) | | Point 6: | (67.3691 mm, -71.5734 mm) | | Point 7: | (59.8514 mm, -50.5770 mm) | | Point 8: | (55.4013 mm, -39.3345 mm) | | Point 9: | (51.8880 mm, -32.0737 mm) | | Point 10: | (47.4379 mm, -26.2183 mm) | | Point 11: | (42.0508 mm, -22.4708 mm) | | Point 12: | (36.4296 mm, -21.0655 mm) | | Point 13: | (31.9795 mm, -21.5339 mm) | | Point 14: | (25.1871 mm, -23.6419 mm) | | Point 15: | (20.5028 mm, -29.2631 mm) | | Point 16: | (14.6473 mm, -37.4608 mm) | | Point 17: | (11.3682 mm, -44.9557 mm) | | Point 18: | (9.0261 mm, -53.1534 mm) | | Point 19: | (6.6839 mm, -66.0354 mm) | | Point 20: | (0.1258 mm, -120.6080 mm) | | Point 21: | (0.0000 mm, 0.0000 mm) | | Width: | 6.2365 inches (158.4070 mm) | | Height: | 10.9848 inches (279.0150 mm) |
