Rocketry Parts Database >> Fins >>

Starfire Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

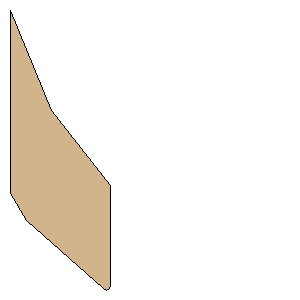

Point 1:(0.0000 mm, 69.6007 mm)
Point 2:(6.3673 mm, 79.6530 mm)
Point 3:(35.4347 mm, 105.6260 mm)
Point 4:(36.5513 mm, 106.0290 mm)
Point 5:(37.6350 mm, 105.5450 mm)
Point 6:(38.0799 mm, 104.4440 mm)
Point 7:(38.0953 mm, 66.6300 mm)
Point 8:(15.8661 mm, 38.1581 mm)
Point 9:(0.0000 mm, 0.0000 mm)
Width:2.7402 inches (69.6007 mm)
Height:4.1744 inches (106.0290 mm)
