Rocketry Parts Database >> Fins >>

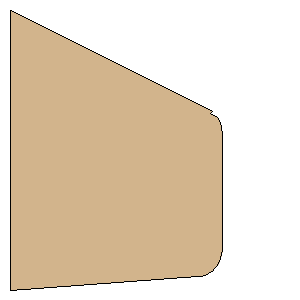

WAC Corporal with Tiny Tim Freef Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 67.0560 mm)
Point 2:(44.8934 mm, 63.9135 mm)
Point 3:(45.8356 mm, 63.7759 mm)
Point 4:(46.7467 mm, 63.4991 mm)
Point 5:(47.6061 mm, 63.0891 mm)
Point 6:(48.3945 mm, 62.5552 mm)
Point 7:(49.0943 mm, 61.9095 mm)
Point 8:(49.6896 mm, 61.1663 mm)
Point 9:(50.1671 mm, 60.3426 mm)
Point 10:(50.5160 mm, 59.4566 mm)
Point 11:(50.8000 mm, 57.5790 mm)
Point 12:(50.8000 mm, 29.3245 mm)
Point 13:(50.7611 mm, 28.6229 mm)
Point 14:(50.6450 mm, 27.9299 mm)
Point 15:(50.4529 mm, 27.2540 mm)
Point 16:(50.1874 mm, 26.6034 mm)
Point 17:(49.8516 mm, 25.9861 mm)
Point 18:(49.4497 mm, 25.4097 mm)
Point 19:(48.0000 mm, 24.8813 mm)
Point 20:(48.4679 mm, 24.4073 mm)
Point 21:(47.2898 mm, 23.6449 mm)
Point 22:(0.0000 mm, 0.0000 mm)
Width:2.6400 inches (67.0560 mm)
Height:2.6400 inches (67.0560 mm)
