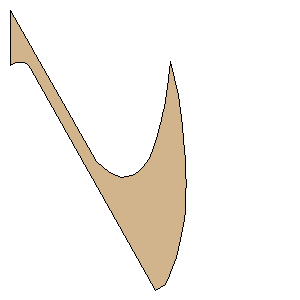

BioHazard Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 25.0250 mm) | | Point 2: | (1.5687 mm, 24.4715 mm) | | Point 3: | (3.4511 mm, 23.7394 mm) | | Point 4: | (5.2289 mm, 23.6348 mm) | | Point 5: | (6.6931 mm, 23.7394 mm) | | Point 6: | (8.0526 mm, 24.5760 mm) | | Point 7: | (9.5167 mm, 26.7722 mm) | | Point 8: | (66.2813 mm, 127.2350 mm) | | Point 9: | (70.7410 mm, 124.9450 mm) | | Point 10: | (72.4796 mm, 120.7880 mm) | | Point 11: | (73.9882 mm, 116.9590 mm) | | Point 12: | (75.5283 mm, 112.6510 mm) | | Point 13: | (76.6572 mm, 108.4880 mm) | | Point 14: | (77.6223 mm, 104.4060 mm) | | Point 15: | (78.5384 mm, 99.9564 mm) | | Point 16: | (79.1813 mm, 95.3300 mm) | | Point 17: | (79.6195 mm, 90.9482 mm) | | Point 18: | (79.8073 mm, 86.3785 mm) | | Point 19: | (79.8699 mm, 82.7479 mm) | | Point 20: | (79.9951 mm, 79.3676 mm) | | Point 21: | (79.8073 mm, 74.5476 mm) | | Point 22: | (79.6195 mm, 68.4163 mm) | | Point 23: | (78.9935 mm, 59.2770 mm) | | Point 24: | (78.1798 mm, 52.5165 mm) | | Point 25: | (76.4402 mm, 38.8671 mm) | | Point 26: | (72.9123 mm, 23.4455 mm) | | Point 27: | (71.5450 mm, 35.1046 mm) | | Point 28: | (71.1524 mm, 38.1081 mm) | | Point 29: | (70.6803 mm, 41.1002 mm) | | Point 30: | (70.1291 mm, 44.0786 mm) | | Point 31: | (69.4991 mm, 47.0415 mm) | | Point 32: | (68.7909 mm, 49.9866 mm) | | Point 33: | (68.0049 mm, 52.9118 mm) | | Point 34: | (66.9015 mm, 57.2234 mm) | | Point 35: | (65.3040 mm, 62.2979 mm) | | Point 36: | (63.2986 mm, 67.3274 mm) | | Point 37: | (62.2042 mm, 69.1742 mm) | | Point 38: | (60.8362 mm, 70.9526 mm) | | Point 39: | (59.6482 mm, 72.2038 mm) | | Point 40: | (58.1818 mm, 73.5492 mm) | | Point 41: | (56.5525 mm, 74.6921 mm) | | Point 42: | (55.1840 mm, 75.3302 mm) | | Point 43: | (53.0636 mm, 75.5354 mm) | | Point 44: | (50.6955 mm, 76.0102 mm) | | Point 45: | (48.5338 mm, 75.2241 mm) | | Point 46: | (44.6033 mm, 73.2589 mm) | | Point 47: | (39.2971 mm, 68.7388 mm) | | Point 48: | (0.0000 mm, 0.0000 mm) | | Width: | 3.1494 inches (79.9951 mm) | | Height: | 5.0093 inches (127.2350 mm) |
