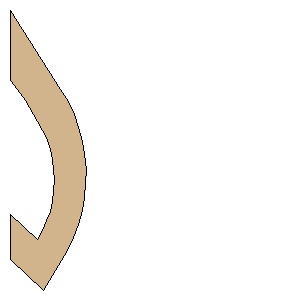

Antares.rkt Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 39.5234 mm) | | Point 2: | (8.6360 mm, 50.8000 mm) | | Point 3: | (15.6572 mm, 62.3862 mm) | | Point 4: | (18.4259 mm, 67.4631 mm) | | Point 5: | (20.7212 mm, 72.7708 mm) | | Point 6: | (22.5242 mm, 78.2653 mm) | | Point 7: | (23.8198 mm, 83.9010 mm) | | Point 8: | (24.5974 mm, 89.6313 mm) | | Point 9: | (24.8505 mm, 95.4085 mm) | | Point 10: | (24.5769 mm, 101.1850 mm) | | Point 11: | (23.7790 mm, 106.9120 mm) | | Point 12: | (22.4633 mm, 112.5430 mm) | | Point 13: | (20.6408 mm, 118.0310 mm) | | Point 14: | (18.3267 mm, 123.3310 mm) | | Point 15: | (15.5400 mm, 128.3980 mm) | | Point 16: | (0.0000 mm, 114.3000 mm) | | Point 17: | (0.0000 mm, 139.7000 mm) | | Point 18: | (18.4841 mm, 156.6510 mm) | | Point 19: | (32.0624 mm, 134.4670 mm) | | Point 20: | (35.4728 mm, 127.3700 mm) | | Point 21: | (38.2419 mm, 120.0000 mm) | | Point 22: | (40.3480 mm, 112.4130 mm) | | Point 23: | (41.7746 mm, 104.6700 mm) | | Point 24: | (42.5104 mm, 96.8306 mm) | | Point 25: | (42.5497 mm, 88.9570 mm) | | Point 26: | (41.8923 mm, 81.1109 mm) | | Point 27: | (40.5431 mm, 73.3538 mm) | | Point 28: | (38.5130 mm, 65.7464 mm) | | Point 29: | (35.8176 mm, 58.3485 mm) | | Point 30: | (32.4783 mm, 51.2181 mm) | | Point 31: | (28.5212 mm, 44.4111 mm) | | Point 32: | (0.0000 mm, 0.0000 mm) | | Width: | 1.6752 inches (42.5497 mm) | | Height: | 6.1674 inches (156.6510 mm) |
