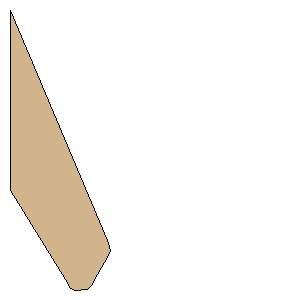

Estes Midget - 13mm engines Free Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 57.1500 mm) | | Point 2: | (17.4625 mm, 85.7250 mm) | | Point 3: | (19.0500 mm, 88.1063 mm) | | Point 4: | (20.6375 mm, 88.9000 mm) | | Point 5: | (24.6063 mm, 88.9000 mm) | | Point 6: | (26.1938 mm, 87.3125 mm) | | Point 7: | (26.9875 mm, 85.7250 mm) | | Point 8: | (30.9563 mm, 78.5813 mm) | | Point 9: | (31.7500 mm, 76.2000 mm) | | Point 10: | (30.9563 mm, 73.0250 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 2.2500 inches (57.1500 mm) | | Height: | 3.5000 inches (88.9000 mm) |
