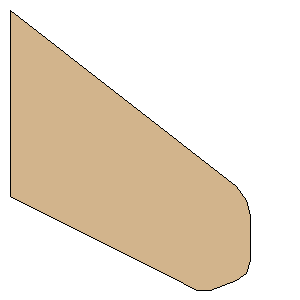

Estes Midget - 13mm engines Free Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 44.4500 mm) | | Point 2: | (41.2750 mm, 65.0875 mm) | | Point 3: | (44.4500 mm, 66.6750 mm) | | Point 4: | (47.6250 mm, 66.6750 mm) | | Point 5: | (53.9750 mm, 64.2938 mm) | | Point 6: | (56.3563 mm, 62.7063 mm) | | Point 7: | (57.1500 mm, 59.5313 mm) | | Point 8: | (57.1500 mm, 49.2125 mm) | | Point 9: | (56.3563 mm, 45.2438 mm) | | Point 10: | (53.9750 mm, 42.0688 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 2.2500 inches (57.1500 mm) | | Height: | 2.6250 inches (66.6750 mm) |
