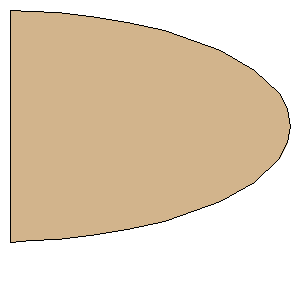

Semroc Competitor Freeform Fin S Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 43.1800 mm) | | Point 2: | (4.0640 mm, 42.9260 mm) | | Point 3: | (8.8900 mm, 42.6720 mm) | | Point 4: | (14.9860 mm, 41.9100 mm) | | Point 5: | (21.8440 mm, 40.8940 mm) | | Point 6: | (28.7020 mm, 39.3700 mm) | | Point 7: | (34.5440 mm, 37.3380 mm) | | Point 8: | (39.1160 mm, 35.5600 mm) | | Point 9: | (45.4660 mm, 32.0040 mm) | | Point 10: | (50.0380 mm, 27.6860 mm) | | Point 11: | (51.5620 mm, 24.6380 mm) | | Point 12: | (52.0700 mm, 21.5900 mm) | | Point 13: | (51.5620 mm, 18.5420 mm) | | Point 14: | (50.0380 mm, 15.4940 mm) | | Point 15: | (45.4660 mm, 11.1760 mm) | | Point 16: | (39.1160 mm, 7.6200 mm) | | Point 17: | (34.5440 mm, 5.8420 mm) | | Point 18: | (28.7020 mm, 3.8100 mm) | | Point 19: | (21.8440 mm, 2.2860 mm) | | Point 20: | (14.9860 mm, 1.2700 mm) | | Point 21: | (8.8900 mm, 0.5080 mm) | | Point 22: | (4.0640 mm, 0.2540 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 2.0500 inches (52.0700 mm) | | Height: | 1.7000 inches (43.1800 mm) |
