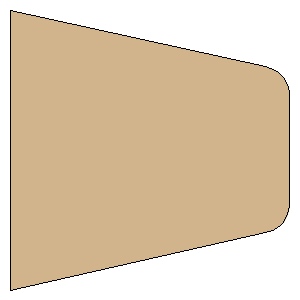

Double Digital Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 57.2220 mm) | | Point 2: | (52.2494 mm, 45.5724 mm) | | Point 3: | (53.0718 mm, 45.3297 mm) | | Point 4: | (53.8541 mm, 44.9784 mm) | | Point 5: | (54.5819 mm, 44.5250 mm) | | Point 6: | (55.2419 mm, 43.9776 mm) | | Point 7: | (55.8222 mm, 43.3462 mm) | | Point 8: | (56.3121 mm, 42.6425 mm) | | Point 9: | (56.7028 mm, 41.8791 mm) | | Point 10: | (56.9870 mm, 41.0701 mm) | | Point 11: | (57.1596 mm, 40.2302 mm) | | Point 12: | (57.2175 mm, 39.3746 mm) | | Point 13: | (57.2175 mm, 17.7920 mm) | | Point 14: | (57.1595 mm, 16.9358 mm) | | Point 15: | (56.9866 mm, 16.0953 mm) | | Point 16: | (56.7020 mm, 15.2857 mm) | | Point 17: | (56.3108 mm, 14.5220 mm) | | Point 18: | (55.8202 mm, 13.8179 mm) | | Point 19: | (55.2391 mm, 13.1864 mm) | | Point 20: | (54.5782 mm, 12.6390 mm) | | Point 21: | (53.8496 mm, 12.1858 mm) | | Point 22: | (52.2431 mm, 11.5928 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Width: | 2.2528 inches (57.2220 mm) | | Height: | 2.2528 inches (57.2220 mm) |
