XR-71 Geen Burd Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |

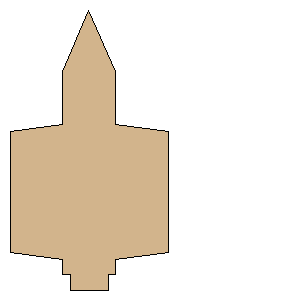

Download as PDF | Point 1: | (0.0000 mm, 50.8000 mm) | | Point 2: | (22.2250 mm, 53.9750 mm) | | Point 3: | (22.2250 mm, 60.3250 mm) | | Point 4: | (25.4000 mm, 60.3250 mm) | | Point 5: | (25.4000 mm, 66.6750 mm) | | Point 6: | (41.2750 mm, 66.6750 mm) | | Point 7: | (41.2750 mm, 60.3250 mm) | | Point 8: | (44.4500 mm, 60.3250 mm) | | Point 9: | (44.4500 mm, 53.9750 mm) | | Point 10: | (66.6750 mm, 50.8000 mm) | | Point 11: | (66.6750 mm, 0.0000 mm) | | Point 12: | (44.4500 mm, -3.1750 mm) | | Point 13: | (44.4500 mm, -25.4000 mm) | | Point 14: | (32.9149 mm, -51.2164 mm) | | Point 15: | (22.2250 mm, -25.4000 mm) | | Point 16: | (22.2250 mm, -3.1750 mm) | | Point 17: | (0.0000 mm, 0.0000 mm) | | Width: | 2.6250 inches (66.6750 mm) | | Height: | 4.6414 inches (117.8914 mm) |
