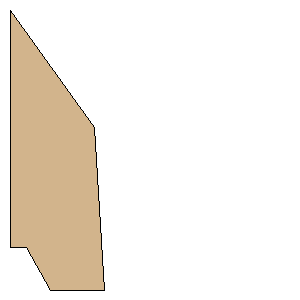

Estes V-2 K-22 Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 71.1200 mm) | | Point 2: | (5.0800 mm, 71.1200 mm) | | Point 3: | (12.1920 mm, 83.8200 mm) | | Point 4: | (28.1940 mm, 83.8200 mm) | | Point 5: | (25.4000 mm, 35.0520 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 2.8000 inches (71.1200 mm) | | Height: | 3.3000 inches (83.8200 mm) |
