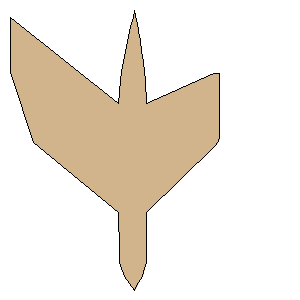

Estes Mars Snooper Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 22.2250 mm) | | Point 2: | (9.5250 mm, 50.8000 mm) | | Point 3: | (44.4500 mm, 79.3750 mm) | | Point 4: | (44.5589 mm, 95.2500 mm) | | Point 5: | (44.5589 mm, 100.0150 mm) | | Point 6: | (45.5511 mm, 102.2474 mm) | | Point 7: | (46.7913 mm, 105.7200 mm) | | Point 8: | (48.7756 mm, 108.4485 mm) | | Point 9: | (50.8000 mm, 111.1250 mm) | | Point 10: | (52.4963 mm, 107.9524 mm) | | Point 11: | (53.9846 mm, 105.4720 mm) | | Point 12: | (54.9767 mm, 102.4954 mm) | | Point 13: | (55.7209 mm, 100.0150 mm) | | Point 14: | (55.5625 mm, 95.2500 mm) | | Point 15: | (55.5625 mm, 79.3750 mm) | | Point 16: | (83.8429 mm, 52.0218 mm) | | Point 17: | (85.1303 mm, 50.4769 mm) | | Point 18: | (85.6452 mm, 48.9321 mm) | | Point 19: | (85.6452 mm, 24.4725 mm) | | Point 20: | (85.3877 mm, 22.9277 mm) | | Point 21: | (83.5854 mm, 22.6702 mm) | | Point 22: | (82.2981 mm, 23.1851 mm) | | Point 23: | (55.5542 mm, 34.9250 mm) | | Point 24: | (55.2231 mm, 25.6311 mm) | | Point 25: | (54.8921 mm, 22.1553 mm) | | Point 26: | (54.3956 mm, 17.6863 mm) | | Point 27: | (53.7335 mm, 13.7139 mm) | | Point 28: | (53.0714 mm, 9.4105 mm) | | Point 29: | (52.4094 mm, 5.6036 mm) | | Point 30: | (51.9128 mm, 2.2933 mm) | | Point 31: | (51.4163 mm, -0.3550 mm) | | Point 32: | (50.8000 mm, -3.1750 mm) | | Point 33: | (50.2499 mm, -0.3033 mm) | | Point 34: | (49.5272 mm, 2.2985 mm) | | Point 35: | (48.6600 mm, 5.7676 mm) | | Point 36: | (48.0818 mm, 9.5258 mm) | | Point 37: | (47.2145 mm, 13.7176 mm) | | Point 38: | (46.4918 mm, 17.7648 mm) | | Point 39: | (45.6245 mm, 21.8121 mm) | | Point 40: | (45.1909 mm, 25.5703 mm) | | Point 41: | (44.4500 mm, 34.9250 mm) | | Point 42: | (0.0000 mm, 0.0000 mm) | | Width: | 3.3719 inches (85.6452 mm) | | Height: | 4.5000 inches (114.3000 mm) |
