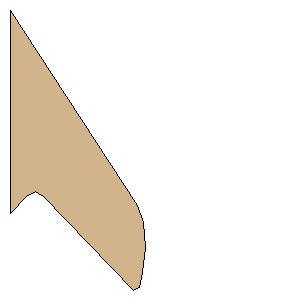

Day-Glo Tiger Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 76.2000 mm) | | Point 2: | (6.3500 mm, 69.8500 mm) | | Point 3: | (9.4032 mm, 67.9064 mm) | | Point 4: | (12.7000 mm, 69.8500 mm) | | Point 5: | (46.1310 mm, 104.7795 mm) | | Point 6: | (48.3086 mm, 103.9085 mm) | | Point 7: | (49.7603 mm, 98.1017 mm) | | Point 8: | (50.8000 mm, 88.9000 mm) | | Point 9: | (49.9054 mm, 79.5200 mm) | | Point 10: | (47.6250 mm, 73.0250 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 3.0000 inches (76.2000 mm) | | Height: | 4.1252 inches (104.7795 mm) |
