Rocketry Parts Database >> Fins >>

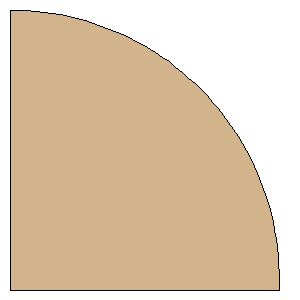

What If USS Enterprise Freeform Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 431.8000 mm)
Point 2:(414.9730 mm, 431.8000 mm)
Point 3:(415.0950 mm, 418.9390 mm)
Point 4:(415.0140 mm, 405.8240 mm)
Point 5:(414.5170 mm, 392.7180 mm)
Point 6:(413.6070 mm, 379.6340 mm)
Point 7:(412.2840 mm, 366.5850 mm)
Point 8:(410.5490 mm, 353.5850 mm)
Point 9:(408.4040 mm, 340.6460 mm)
Point 10:(405.8510 mm, 327.7810 mm)
Point 11:(402.8930 mm, 315.0040 mm)
Point 12:(399.5330 mm, 302.3260 mm)
Point 13:(395.7730 mm, 289.7610 mm)
Point 14:(391.6190 mm, 277.3200 mm)
Point 15:(387.0730 mm, 265.0180 mm)
Point 16:(382.1410 mm, 252.8650 mm)
Point 17:(376.8270 mm, 240.8740 mm)
Point 18:(371.1370 mm, 229.0570 mm)
Point 19:(365.0770 mm, 217.4260 mm)
Point 20:(358.6520 mm, 205.9920 mm)
Point 21:(351.8680 mm, 194.7670 mm)
Point 22:(344.7340 mm, 183.7610 mm)
Point 23:(337.2550 mm, 172.9870 mm)
Point 24:(329.4390 mm, 162.4550 mm)
Point 25:(321.2950 mm, 152.1740 mm)
Point 26:(312.8300 mm, 142.1570 mm)
Point 27:(304.0520 mm, 132.4110 mm)
Point 28:(294.9710 mm, 122.9480 mm)
Point 29:(285.5950 mm, 113.7770 mm)
Point 30:(275.9340 mm, 104.9070 mm)
Point 31:(265.9980 mm, 96.3460 mm)
Point 32:(255.7960 mm, 88.1036 mm)
Point 33:(245.3380 mm, 80.1877 mm)
Point 34:(234.6360 mm, 72.6063 mm)
Point 35:(223.7000 mm, 65.3668 mm)
Point 36:(212.5400 mm, 58.4766 mm)
Point 37:(201.1680 mm, 51.9425 mm)
Point 38:(189.5950 mm, 45.7710 mm)
Point 39:(177.8330 mm, 39.9684 mm)
Point 40:(165.8930 mm, 34.5403 mm)
Point 41:(153.7880 mm, 29.4923 mm)
Point 42:(141.5300 mm, 24.8293 mm)
Point 43:(129.1300 mm, 20.5561 mm)
Point 44:(116.6010 mm, 16.6768 mm)
Point 45:(103.9560 mm, 13.1954 mm)
Point 46:(91.2072 mm, 10.1154 mm)
Point 47:(78.3675 mm, 7.4398 mm)
Point 48:(65.4496 mm, 5.1712 mm)
Point 49:(52.4665 mm, 3.3121 mm)
Point 50:(39.4312 mm, 1.8641 mm)
Point 51:(26.3566 mm, 0.8288 mm)
Point 52:(0.1419 mm, 0.0000 mm)
Point 53:(0.0000 mm, 0.0000 mm)
Width:17.0000 inches (431.8000 mm)
Height:17.0000 inches (431.8000 mm)
