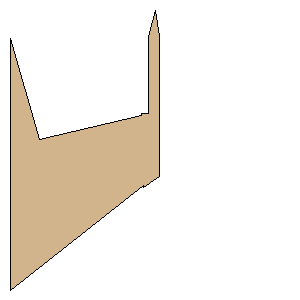

Estes Interceptor E Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 179.8320 mm) | | Point 2: | (95.2500 mm, 104.9020 mm) | | Point 3: | (95.2500 mm, 106.6800 mm) | | Point 4: | (106.6800 mm, 98.8060 mm) | | Point 5: | (106.6800 mm, -1.2700 mm) | | Point 6: | (103.8860 mm, -20.3200 mm) | | Point 7: | (99.0600 mm, -1.2700 mm) | | Point 8: | (99.0600 mm, 53.3400 mm) | | Point 9: | (93.7260 mm, 53.3400 mm) | | Point 10: | (93.7260 mm, 55.3720 mm) | | Point 11: | (20.8280 mm, 72.1360 mm) | | Point 12: | (0.0000 mm, 0.0000 mm) | | Width: | 7.0800 inches (179.8320 mm) | | Height: | 7.8800 inches (200.1520 mm) |
