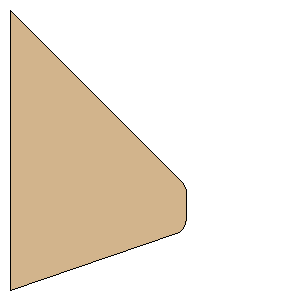

Estes - Star Orbiter Freeform Fi Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 120.6500 mm) | | Point 2: | (71.6271 mm, 96.4622 mm) | | Point 3: | (73.0448 mm, 95.7775 mm) | | Point 4: | (74.2505 mm, 94.7649 mm) | | Point 5: | (75.1700 mm, 93.4869 mm) | | Point 6: | (75.7468 mm, 92.0220 mm) | | Point 7: | (75.9454 mm, 90.4601 mm) | | Point 8: | (75.9712 mm, 78.8716 mm) | | Point 9: | (75.8827 mm, 77.8999 mm) | | Point 10: | (75.6463 mm, 76.9533 mm) | | Point 11: | (75.2677 mm, 76.0540 mm) | | Point 12: | (74.7558 mm, 75.2234 mm) | | Point 13: | (74.1228 mm, 74.4810 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 4.7500 inches (120.6500 mm) | | Height: | 4.7500 inches (120.6500 mm) |
