Rocketry Parts Database >> Fins >>

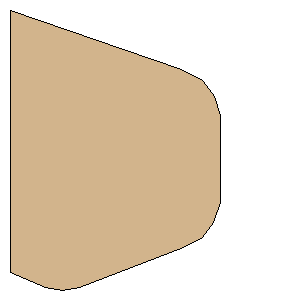

Estes Bumble Bee Freeform Fin Se Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

Point 1:(0.0000 mm, 47.6250 mm)
Point 2:(6.4084 mm, 50.4125 mm)
Point 3:(9.5250 mm, 50.8000 mm)
Point 4:(12.6076 mm, 50.2998 mm)
Point 5:(31.5432 mm, 43.0863 mm)
Point 6:(34.9250 mm, 41.2750 mm)
Point 7:(36.9534 mm, 38.5778 mm)
Point 8:(38.1000 mm, 34.9250 mm)
Point 9:(38.1000 mm, 19.0500 mm)
Point 10:(37.0661 mm, 15.6972 mm)
Point 11:(34.9250 mm, 12.7000 mm)
Point 12:(31.0923 mm, 10.8506 mm)
Point 13:(0.0000 mm, 0.0000 mm)
Width:1.8750 inches (47.6250 mm)
Height:2.0000 inches (50.8000 mm)
